200WOG Brass Gate Valve for Water In China

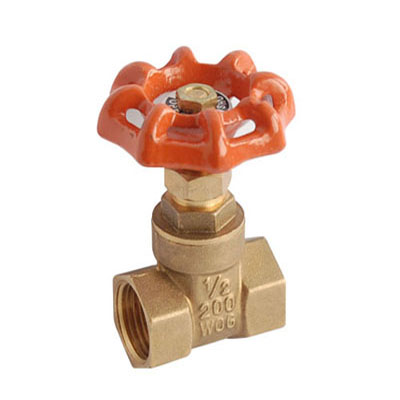

200WOG Brass Gate Valve for Water

  • Model NO.: NXZ-002

Share it |


brass gate valve, brass body
Nominal pressure: 1.6MPa
Suitable medium: water and seawater
Non-causticity liquid and saturated steam
Working temperature: -20 to ≤170°C
Components and materials:
Nut: brass
Rating plate: aluminum
Handle wheel: aluminum
Packing gland nut: brass
Packing gland washer: brass
Packing ring: teflon
Bonnet: brass
Stem: brass
Locking washer: brass
Wedge disc: brass
Body: brass
Size: 1/2 to 4-inch
Gate Valve pressure rating 200 psi/14 bar non-shock cold working pressure, Full port (¼” to 2”), Conventional port (2½” to 4”), Brass body, NPT x NPT end connections or BSPTXBSPT thread.
