Ball valve

ball valve working medium: water, gas and oil Material: brass or zinc-alloy, bronze Nominal pressure: 1.6Mpa-2.5Mpa Size: 1/4" to 4" Thread: F/F. F/M. M/M Pipe thread to ISO 228/ ISO 7/1
Nov 16, 2012
NXQ-026

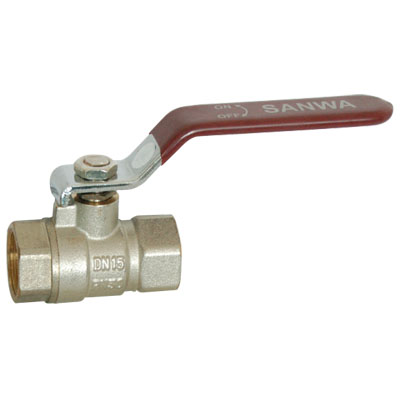

ball valve
brass body, brass ball, brass stem
full port, female thread
coffee color steel handle
size:1/2"-4'
Components and materials:
Nut: brass
Handle: steel
Washer: brass
Packing ring: brass
Stem: brass
Seat ring: teflon
Ball: brass
Bonnet: brass
Body: brass
Specifications:
Nominal pressure: 2.0MPa
Suitable medium: water, non-causticity liquid saturated steam
Parallel thread conform to ISO-228-1:2000
Anti-oxygen glue
Applied to join body and bonnet
Nickel plated and full port
Working temperature: -20 to 180°C
